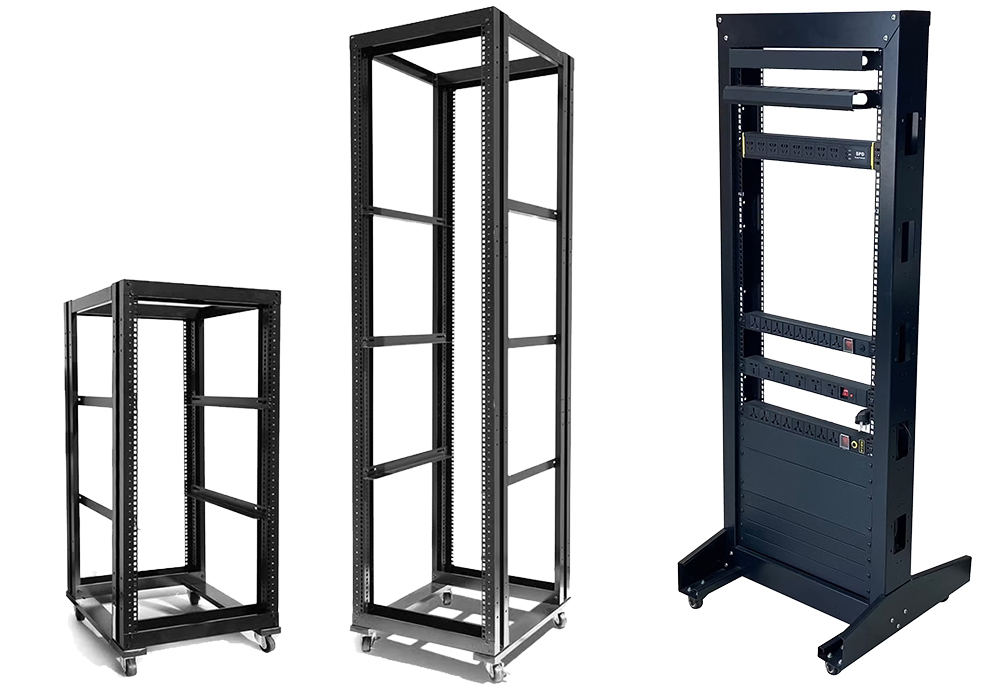

Our open bay racks are primarily designed for service providers, telecom operators, and network infrastructure companies that require fast access, high-density installations, and efficient airflow. Commonly deployed in ISP facilities, telecom exchanges, network operation centers (NOCs), and data centers, these racks offer a practical and cost effective solution for managing large volumes of active networking equipment.
The open-frame structure allows unrestricted ventilation, making it ideal for environments with continuous equipment operation and frequent maintenance. The modular design supports quick installation, easy expansion, and simplified servicing, which is critical for service provider networks and mission-critical infrastructure.
Open bay racks are widely used by internet service providers (ISPs), telecom service providers, data center operators, and managed service providers. They are suitable for core and access network equipment, aggregation switches, routers, transmission equipment, and monitoring systems, where accessibility, airflow, and scalability are key operational requirements.
Manufactured from high-quality CRCA steel to ensure excellent structural strength and long-term durability, suitable for continuous operation in service provider and telecom environments.
Structural members and mounting rails fabricated from 1.2 mm to 2.0 mm thick steel, depending on rack height and load-bearing requirements.
Designed to support standard 19-inch rack-mountable equipment, compatible with telecom and service provider networking hardware.
Available in 22U, 27U, 30U, 35U, 42U, and 45U. Custom rack heights can be manufactured as per project specifications.
Depths starting from 150 mm up to 800 mm / 1000 mm, suitable for routers, switches, transmission equipment, and service provider infrastructure.
Standard widths of 600 mm and 800 mm, allowing sufficient space for equipment mounting and structured cable routing.
Designed to support high static loads up to 600 kg or more, depending on rack configuration and installation method.
High-quality powder-coated finish for corrosion resistance and long service life.
Standard colors include Black and RAL 7035 (Light Grey). Custom colors available on request.
Open-frame design ensures maximum airflow and efficient heat dissipation without the need for forced cooling.
Open structure allows easy cable routing. Optional accessories include vertical and horizontal cable managers.
Suitable for floor mounting with optional base frames and anchoring provisions for added stability.
Shelves, PDU mounting brackets, earthing kits, caster wheels, leveling feet, and cable organizers.
150mm up to 800mm / 1000mm for various equipment types.
Up to 600kg static load capacity depending on configuration.
Powder-coated finish in Black, RAL 7035, or custom colors.
Contact our engineering team for technical specifications, pricing, or custom open bay rack solutions.
